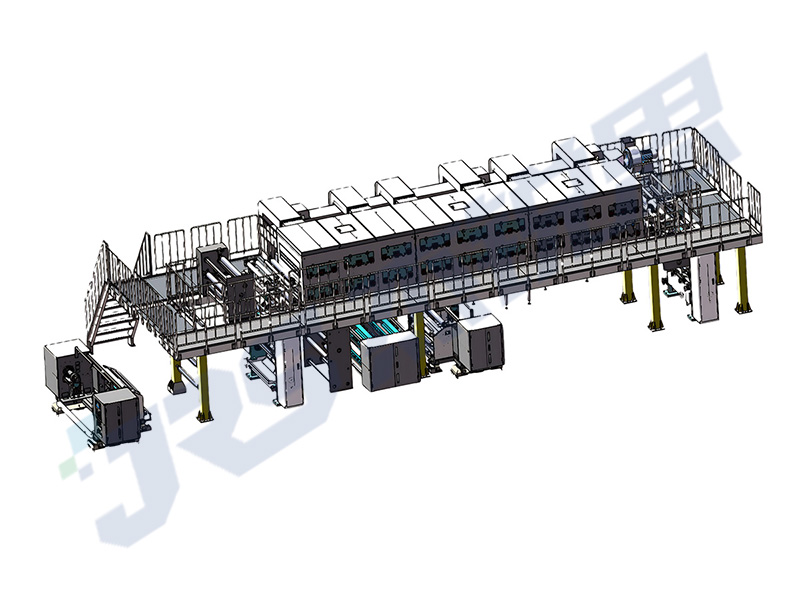

Single/Double Sided Gravure Coating Machine

Information

Equipment advantages:
1. Siemens control system can achieve high-speed communication and data transmission, with high reliability and stability, and is easy to remotely monitor and control.
2. Automatic winding, non-stop roll changing, for AGV docking automatic loading and unloading.
3. By carving different intaglio roller patterns, different coating styles can be achieved.
4. Wind knife type wind box, internal mesh rectification, uniform wind speed, optional waste heat recovery, energy-saving by 40%.
5. According to the factory layout, vertical/horizontal options are available.

Equipment parameters:

Item Parameter
Coating Method Gravure Coating
Coating Mode Vertical (Height Requirement) / Horizontal (Length Requirement)
Coating Width Max:1400mm
Oven Length 9-15m
Coating Speed Max:180m/min(According to Length)
Heating Method Electricity/Steam/Thermal oil/Natural gas
Speed Accuracy 0.3%
Coating Thickness 0.5-6μm
Optional Module Surface Density Detector / CCD Defect Detection / Waste Heat Recovery
Coating Form Single Sided Coating / Double-sided Coating

*The above parameters are subject to the actual product
